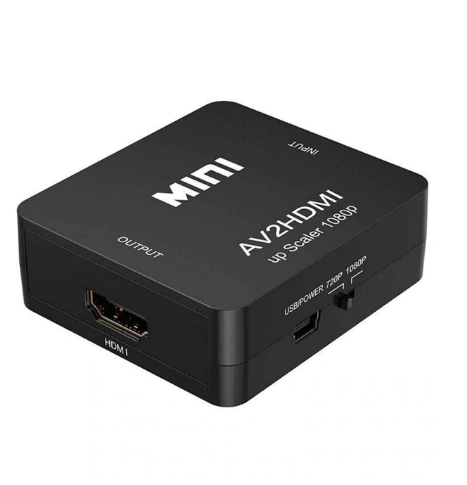

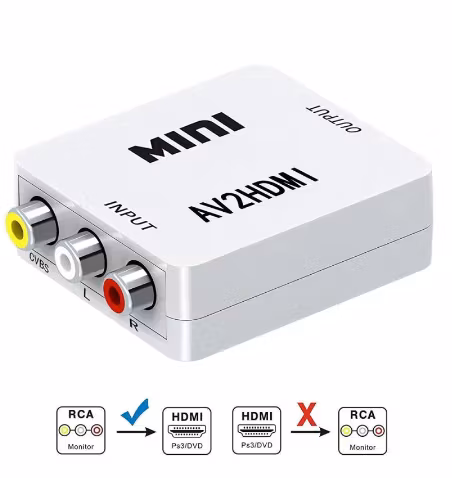

RCA / AV / CVBS till HDMI signalomvandlare CVBS AV to HDMI converter Up Scaler 1080p

Signalomvandlare från RCA / AV / CVBS till HDMI uttag. AV till HDMI-adapter, tillverkad med en avancerad IC för att uppnå tydligaste möjliga bildkvalitet med optimal färg. Denna adaptern fungerar med HDMI 720p eller 1080p, och utgångsläget väljas med en omkopplare. USB kabel och användarmanual ingår.

Description:

Introduction: It converts RCA (AV, composite, CVBS) signals into HDMI signals so you can watch your video on a modern TV with HDMI ports.

The analog to digital conversion in this module employs 10 bits maximal 162MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch , auto-detect and auto-convert the composite signal to 1080p(60HZ) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.

Converts analog composite input to HDMI 1080p (60HZ) output,displayed on 1080p (60HZ) HDTV/Moniter. Support HDMI 1080p or 720p output. Provide advanced signal processing with great precision,colors, resolutions, and details.Plug and play

Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input.

Attention: Please connect your power cable(included) to get this video converter working perfectly. Make sure your device has hdmi connector.

Specifications:

1. Input ports: 1xRCA (Yellow, White, Red), USB power

2. Output ports: 1xHDMI(standard)

3. NTSC/PAL compatible

4. Composite input: PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N

5. HDMI output: 1080p/60Hz, 720p/60Hz

6. Dimensions (mm): 66(D)x55(W)x20(H)

7. Weight (g): 40g

8. Power: USB Port

Features:

No need to install drivers, portable, flexible, plug and play.

Output the audio synchronization with video.

Can be displayed on Moniter/ TV with 1920x1080@60Hz High bandwidth capability

NOTE: May experience less than three second lag.Will not convert audio only. , Important: For converter to function properly all cables must be connected and in use (yellow: video, white: left audio, and red: right audio).Supported audio format: 2 channel analog audio, does not support 3D.

color: black, white

Material: ABS+metal

Package Included:

1x AV to HDMI Converter

1x USB Cable

1x User Manual

Notes:

NOTE: Video signal transfer
